Special Offer
Complete PCR & Gel Electrophoresis System
Double the Instruments & Save More
Our Instruments
Mupid-2plus System
Offers compact, integrated power supply–based agarose gel electrophoresis ideal for laboratories with limited bench space.
Mupid-exU System
Compact electrophoresis system designed for efficient DNA separation with easy operation and reliable performance.
Mupid One
Features separate power unit, side buffer drain, multipipettor support, seven voltage settings (18 – 135V), built-in timer, and CE marking.
PCR Thermal Cycler
Advanced thermal cycler designed for precise PCR amplification with touchscreen control, gradient optimization, and accurate temperature performance.
Bundle Up & Save Big..
Discover our exclusive bundle deals on research essentials. Download the brochure today—limited-time offer!

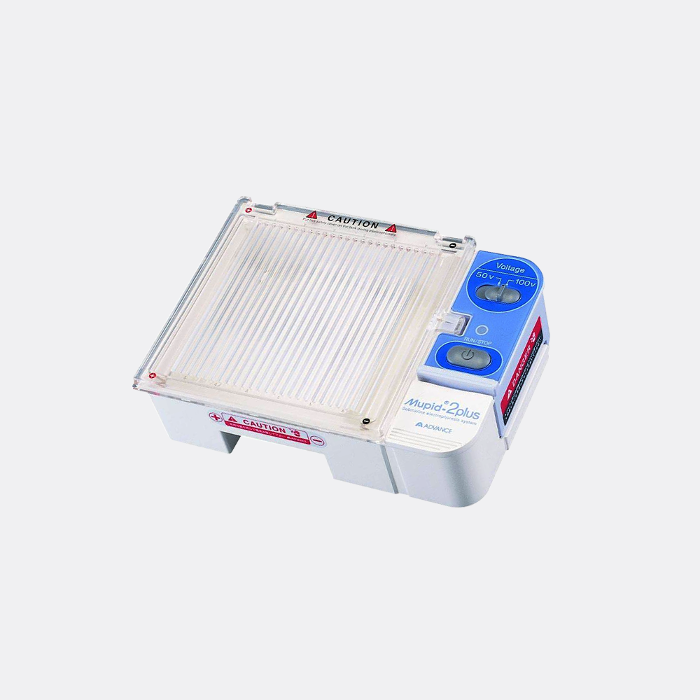

Mupid-2plus
The Mupid-2plus is a compact, "all-in-one" submarine electrophoresis system featuring a detachable power supply, safety interlock lid, and the ability to cast 2 large or 4 mini gels. It offers selectable voltage (50V/100V), a 300ml buffer capacity, and improved electrodes for even current flow, making it ideal for rapid agarose gel electrophoresis.
Features
- Highly proven, reliable system with high safety
- Excellent and functional design
- Easy-to-wash electrophoresis bath
Specifications
| Electrophoresis Cell | |
| Outside Dimension | 187.5 mm (W) × 139.5 mm (L) × 57.0 mm (H) |
| Migration tank internal dimensions | 133.0 mm (W) × 120.6 mm (L) × 47.5 mm (H) |
| Buffer capacity | Approx. 250-280 mL (maximum 300 mL when setting gel) |
| Material | PPHOX |
| Weigh | 260 grams |
| Lid outside dimension | 157.0 mm (W) × 139.5 mm (L) × 13.0 mm (H) |
| Power Supply | |
| Overall dimension | 43.0 mm (W) × 109.0 mm (L) × 52.0 mm (H) (cord excluded) |
| Input | 100-120 VAC, 50 Hz/60 Hz, 25 VA (A step-down transformer is required for use at 220-240 VAC, over 120 VAC) (When there is the necessity of keeping the temperature of buffer liquid low, it recommends using it in 100 VAC. |
| Output | Half or all rectified waveform at input voltage Half: 45 V (avg), 71 V (rms), Full: 90 V (avg), 100 V (rms) in case of 100 VAC Half: 54 V (avg), 85 V (rms), Full: 108 V (avg), 120 V (rms) in case of 120 VAC |
| Fuse | 250 V, 0.8 A |
| Weight | 155 grams |
| Gel Maker Set L | |
| Gel maker stand dimensions | 240.0 mm (W) × 126.0 mm (L) × 17.5 mm (H) |
| Number of gels | 2 large gels, 4 mini gels |
| Gel tray dimensions | Large size : 109 mm (W) × 60 mm (L) Mini size : 55 mm (W) × 60 mm (L) |
| Well shape | Large gel : 6 mm (W) × 1 mm (L) × 12 wells 4 mm (W) × 1 mm (L) × 17 wells Mini gel : 6 mm (W) × 1 mm (L) × 6 wells 4 mm (W) × 1 mm (L) × 8 wells |
| Environmental Conditions | |
| Operating temperature | 5-35 °C |
| Humidity | 20-80 % RH non-condensing |
| Operating environment | Indoor use only |
| Altitude | Installation Category II |
| Protection class | Pollution Degree 2 |

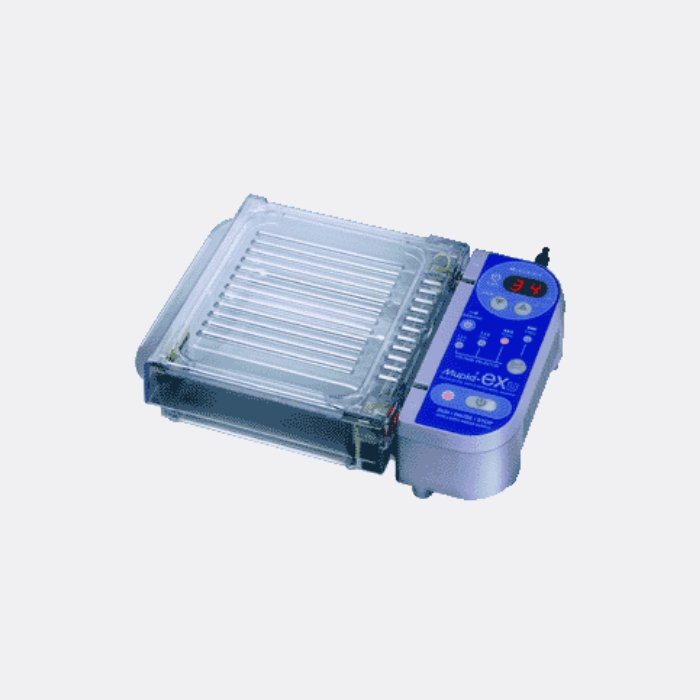

Mupid-exU
The Mupid-exU system for gel electrophoresis offers novel features, such as multichannel pipettor compatibility, a UVtransmissible tank, a cover placement light sensor, 7 output voltage settings (18, 25, 35, 50, 70, 100, and 135V), and a timer function to enhance its usability and safety.
Features
- Complete UV-transmissible tank for band visualization
- High sample capacity up to 104 samples in a single gel
- Adjustable timer with memory function
- Heat-resistant material supporting liquid gel solution up to 100°C to be poured into the gel tray
Specifications
| Electrophoresis Tank | |
| Outside Dimension | 183mm (W) x 56mm (H) x 164mm (L) |
| Material | UV transparent plastic (50% at 254 nm, 80% at 312 nm) |
| Solution volume | Approx. 270-320 ml |
| Multi-sample | Multichannel-pipette compatible See "Comb" column below* |
| Safety Lid | |
| Overall dimension | 197mm (W) x 38mm (H) x 169mm (L) |
| Material | UV non-transparent |
| Intelligent Power Supply | |
| Overall dimensions | 75mm (W) x 62mm (H) x 170mm (L) |
| Weight | 410 grams |
| Input Voltage | AC100 - 240 V, 50/60 Hz |
| Output Voltage | 130 V, 100V, 50V, 25V, 70V, 35V, 18V Constant peak voltage of 140V and duty control |
| Timer | Timer operation 0 - 99 min. and continuous mode Pause function supported |
| Safety Switch | Micro-switches in the power supply without safety lid, no output of Power |
| Memory function | Automatic memory (the last used V & T) |
| Quantity | 1 |
| Gel Tray | |
| Gel Tray (small) | 130mm(W) x 16.5mm(H) x 59.5mm(L) |
| Gel Tray (large) | 130mm(W) x 24mm(H) x 122mm(L) |
| Quantity | 2 small gel trays; 1 large gel tray |
| Comb | |
| Multiple number of wells | 13 - 26 wells (13wells: 9mm spacing 26wells: 4.5mm spacing) |
| Quantity | 4 ( supports making 13 or 26 wells) |
| Gel Casting Stand | |
| Overall dimensions | 149mm(W) x 20mm(H) x 125mm(L) |
| Quantity | 1 |

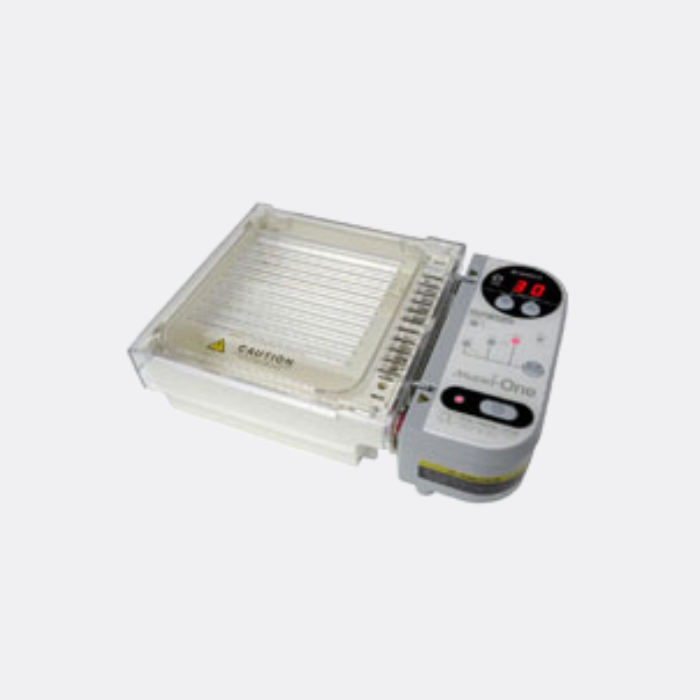

Mupid-One
The Mupid One system enables gel analysis via electrophoresis. The following convenient features are included: a separate power unit, side buffer drain, multipipettor support, seven voltage output settings (18, 25, 35, 50, 70, 100 and 135V), a built-in timer, and a CE mark.
Features
- Multichannel pipettor compatible design
- Simultaneous electrophoresis of 104 sample & seven selectable voltage settings
- Wide-range global voltage compatibility
Specifications
| Electrophoresis Cell | |
| Overall Dimension | 183M(W) x 59mm(H) x 162mm(L) |
| Solution Volume | about 410 - 440 ml (includes buffers and gels) |
| Quantity | 1 |
| Safety Lid | |
| Overall dimension | 197mm(W) x 38mm(H) x 179mm(L) |
| Material Characteristic | transparent resin |
| Quantity | 1 |
| Power Supply | |
| Overall dimension | 75mm(W) x 62mm(H) x 170mm(L) |
| Weight | 410 grams |
| Input Voltage | 00VAC - 240VAC, 50/60Hz |
| Output Voltage | 35V, 1 00V, 50V, 25V, 70V, 35V, 18V Constant peak voltage of 140V, and duty control |
| Timer | Timer operation 0 - 99min, and continuous mode Temporary shutdown supported |
| Safety Switch | Micro-switches in the Power Supply Without safety lid, no output of Power |
| Fuse Type | 250V 3.15A type T Diameter=5mm Length=20mm |
| Memory Function | Automatic memory (the last used V and T) |
| Quantity | 1 |
| Gel Tray-HR | |
| Gel Tray (small) | 130mm(W) x 16.5mm(H) x 59.5mm(L) |
| Gel Tray (large) | 130mm(W) x 24mm(H) x 122mm(L) |
| Quantity | small: 2, large: 1 |
| Comb-HR | |
| Multiple number of wells | 13 - 26 Wells 13 wells : 9mm spacing 26 wells : 4.5mm spacing |
| Quantity | 4 (supports making 13 or 26 wells) |
| Gel Casting Stand-HR | |
| Overall dimensions | 149mm(W) x 20mm(H) x 128mm(L) |
| Quantity | 1 |
| Center Partition -HR | |
| Overall dimensions | 135mm(W) x 16.5mm(H) x 3mm(T) |
| Quantity | 1 |
Find Your Ideal System...
| Product Specifications | |||
| Description | Mupid-2plus | Mupid-exU | Mupid-One |
| Cat# | Mupid_AD110 | AD140 | AD160 |
| Output voltage | DC50V,100V | DC135V,100V,75V,50V,25V,35V,18V | |
| Input voltage | AC100〜110V | AC100〜240V、AC50/60Hz | |
| Timer settings | NA | Can be set from 0 to 99 minutes and can be energized continuously | |
| Safety switch | Microswitch (Voltage output stops when there is no lid) |
Microswitch (Voltage output stops when there is no lid) |
|
| Memory function | NA | Voltage and timer settings from last use automatic memory | |
| Buffer capacity | 250〜280ml | 300-350ml | |
| Multichannel Pipette compatible | NA | MAX. 96 samples When using 13 wells: 9mm pitch When using 26 wells: 4.5mm pitch |
|
| External dimensions (When power supply and tank are combined) |
187(W)x140(D)x57(H)mm | 260(W)x170(D)x62(H)mm | 259(W)x169(D)x64(H) mm |
| Weight (When the power supply and socket are combined) |
450g | 750g | 838g |
- Note: Wear safety goggles when using the trans-illuminator or operating the equipment with ultraviolet rays through the lid slits
- This product is subject to change without notice.

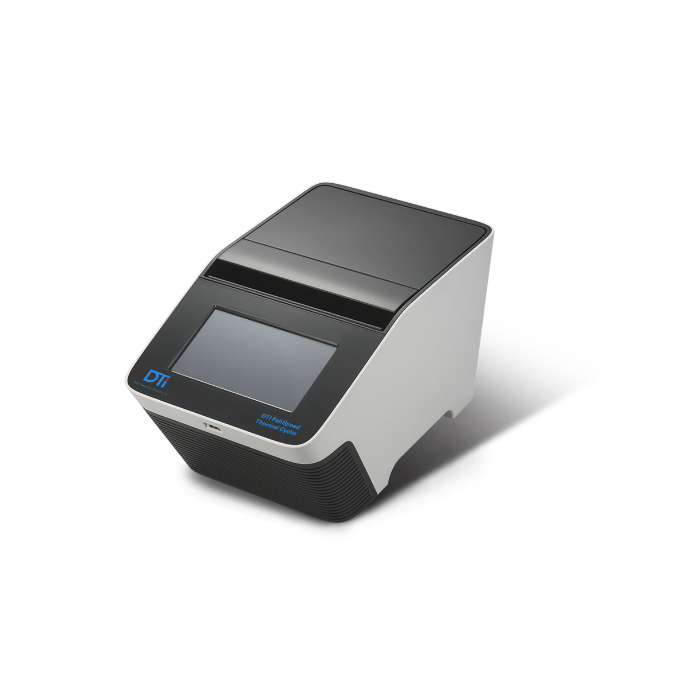

DTI FabSpeed Thermal Cycler
Enhancing PCR Efficiency and Accuracy
DTI FabSpeed thermal cycler is designed specifically to enhance PCR efficiency and accuracy. It is equipped with a 7” sensitive touchscreen and user-friendly graphic interface, making operations highly intuitive. With flexible ramp rate and gradient temperature control, it greatly optimizes PCR accuracy.
Outstanding Performance
-
Flexible Ramp Rate Control
from 0.1 - 5.5 °C/sec to meet the need of different experiment requirements.
-
Fully Adjustable Lid Temperature
can be set between 35 - 120 °C. Adjustable Lid temperature is very key feature for some NGS experiments
-
Gradient Optimization
range of 1 - 30 °C enables optimal experimental conditions in a single PCR run.
-
Software tools
Tm calculator, Master mix calculator, Copy
number Converter
